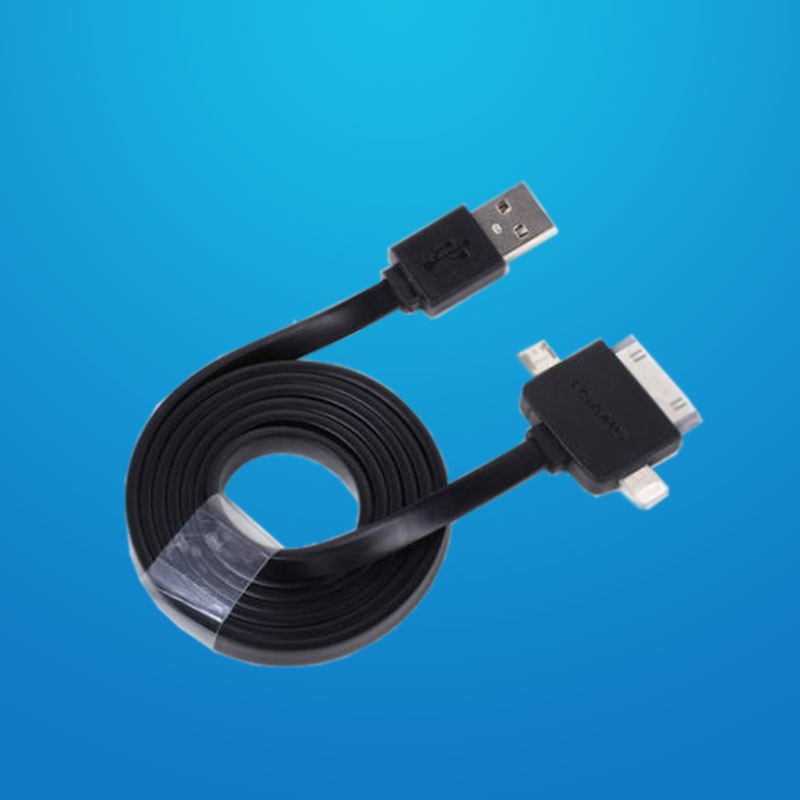

BOPP tie optical film is a BOPP functional film used for packaging in the electronic product industry. The product has good transparency, smooth film surface and few crystal points. After adhesive backing and die-cutting processing, it can be used to produce digital product supporting chargers, data transmission lines, and factory protective packaging for headphones.
BOPP tie light film
Double-sided tape lamination, composite waste removal film, die-cutting processing, and production of outer packaging of digital product spare parts
Product name: BOPP tie light film
Product features
1. High transparency and gloss;
2. Uniform thickness and good flatness;
3. The corona surface maintains good corona and has excellent processing performance;
4. Low static electricity and easy to operate.
Corona surface: Single-sided treatment, corona surface facing inward.
Typical physical properties of products
Performance indicators Properties | unit Unit | Test results Test result | Testing standards Test standard | ||
1 | Thickness | μm | 50 | GB/ T6672 | |
2 | tensile strength Tensile Strength | Longitudinal MD | MPa | ≥ 120 | GB/ T1040.3 |
Horizontal TD | MPa | ≥ 200 | |||
3 | Elongation at break Elongation At Break | Longitudinal MD | % | ≤ 200 | GB/ T1040.3 |
Horizontal TD | % | ≤ 65 | |||
4 | Haze | % | ≤ 2.0 | GB/T2410 | |
5 | GlossinessGloss | % | ≥ 90 | GB/ 8807 | |
6 | Wetting tensionTreatment Level | mN/ m | 38 | GB/ T14216 | |
Note: Special requirements can be negotiated separately.
