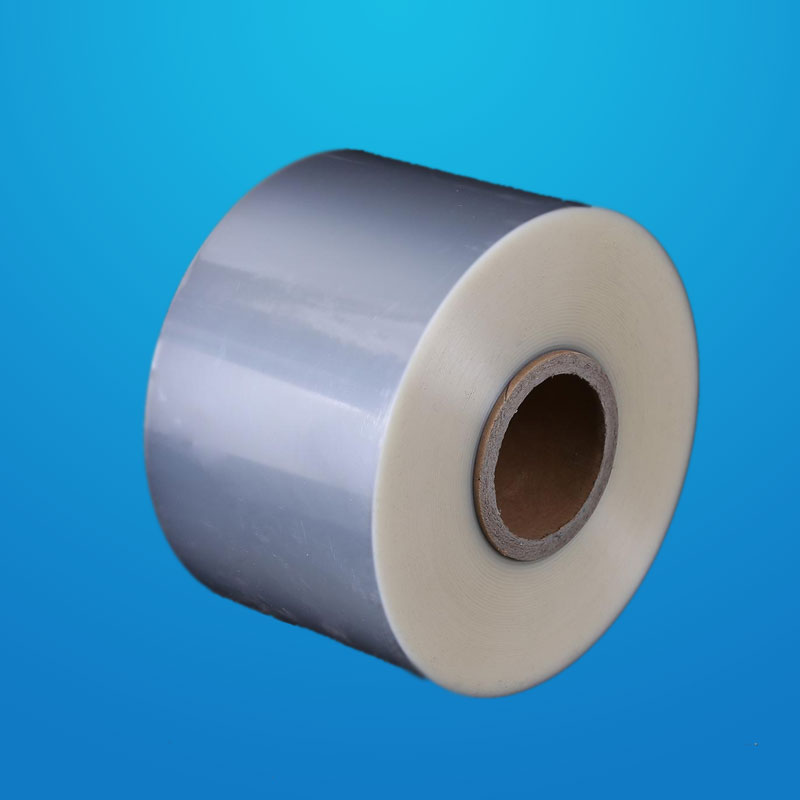

BOPP high temperature resistant optical film

Product Description：
An innovative product of functional BOPP film, the product has excellent temperature resistance and can withstand high temperatures of 160°C. The inherent characteristics of other conventional BOPP films, such as maintaining high transparency, good transfer properties, and printability, remain the same as non-high temperature resistant products.
Product Type：
BOPP high temperature resistant optical film
Application Scope：
1. Circuit board stacking and isolation;
2. Epoxy resin coating molding processing for golf clubs, fishing rods, tennis rackets, etc.

Product name: BOPP high temperature resistant optical film

Product features

1. The product can withstand high temperatures and is suitable for high-temperature use environments;

2. Maintain the original characteristics of BOPP film, with good flatness, transparency and gloss;

3. Excellent processing performance.

Corona surface: no corona treatment.

Typical physical properties of products

Performance indicators Properties			unit Unit	Test results Test result	Testing standards Test standard
1	Thickness		μm	38	GB/ T6672
2	tensile strength Tensile Strength	Longitudinal MD	MPa	≥ 120	GB/ T1040.3
2	tensile strength Tensile Strength	Horizontal TD	MPa	≥ 180	GB/ T1040.3
3	Elongation at break Elongation At Break	Longitudinal MD	%	≤ 180	GB/ T1040.3
3	Elongation at break Elongation At Break	Horizontal TD	%	≤ 100	GB/ T1040.3
4	Haze		%	≤ 6.0	GB/T2410
5	Wetting tensionTreatment Level		mN/ m	38	GB/ T14216

Note: Special requirements can be negotiated separately.
